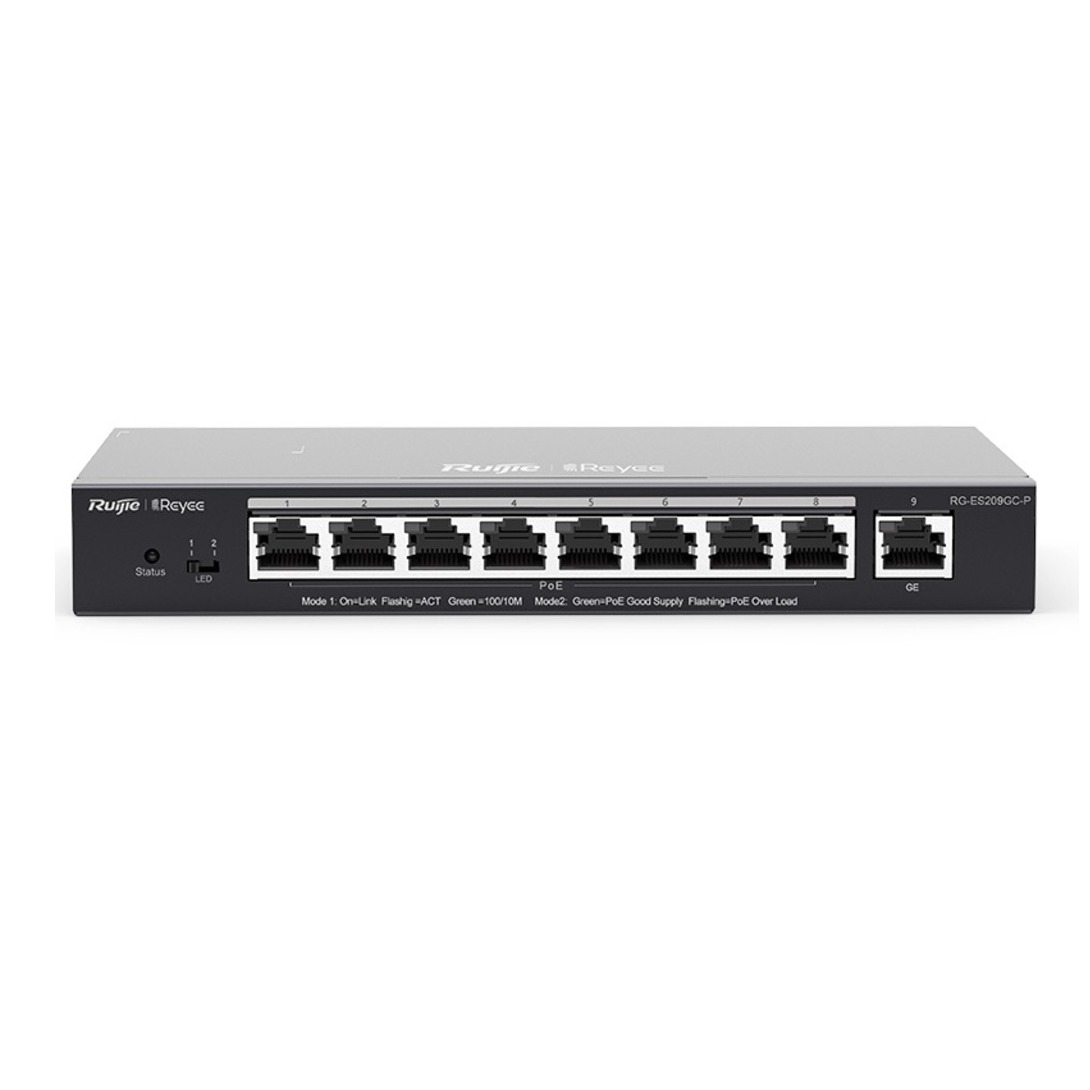

9 Port Gigabit Smart POE Switch

Model

RG-ES205GC-P

RG-ES206GC-P

RG-ES209GC-P

Switching capacity

10Gbps

12Gbps

18Gbps

Switching Cache

1Mbit

1Mbit

1.5Mbit

Package forwarding rate

7.44Mpps

8.9Mpps

13.392Mpps

Ports

4 10/100/1000 Base-T ports (PoE/PoE+)

1 10/100/1000 Base-T uplink port

4 10/100/1000 Base-T ports (PoE/PoE+)

2 10/100/1000 Base-T uplink port

8 10/100/1000 Base-T ports (PoE/PoE+)
1 10/100/1000 Base-T uplink port

PoE Standard

IEEE 802.3at / 802.af

PoE Power Budget

54W

54W

120W

Speed / Duplex mode

Auto / Half / Full duplex Speed auto / 10/ 100 /1000

MAC address

2K

4K

4K

Maximum Number of VLANs

16

Allowed VLAN ID

1 ~ 4094

Port-based VLAN

Support

Flow Control

Support

Loop Protection

Support

Unknown Unicast Suppression

Support

Multicast / Broadcast Storm Suppression

Support

Mirroring

Many-to-One Mirroring

Port Isolation

Support

Cable Testing

Support

ICMP Ping

Support

DNS

DNS Client

Telnet

Support

MACC

Support

Port Surge

Common mode: 4KV

Electrostatic Discharge

Air discharge: 6KV
Contact discharge: 4KV

         Model

Specifications

RG-ES205GC-P

RG-ES206GC-P

RG-ES209GC-P

Power Consumption

≤ 60W

≤ 60W

≤ 130W

Power supply

External power adapter
100-240V

Dimensions (W x D x H)

148mm*78mm*26mm

148mm*78mm*26mm

202*108*28mm

Weight

0.9 kg (with package)

0.9 kg (with package)

1.3 kg (with package)

MTBF

>200K

Operating temperature

0 to 40°C

Storage temperature

-40~70ºC

Operating humidity

10% to 90% RH

Storage humidity

5% to 95% RH

Operating Altitude

-500 ~ 5000 meters

FAN

Fanless

Management

Support management and configuration through web management interface, MACC cloud platform and mobile app

Safety Standard Ground Resistance

GB4943-2011, EN 62638-1

EMC

GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
