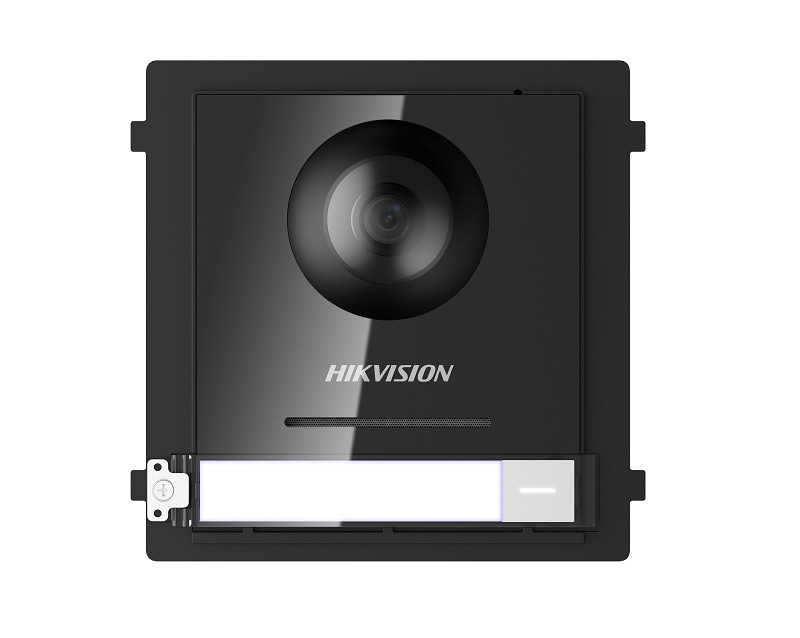

2.0MP Harici Kameralı Zil Paneli
- Ürün Özellikleri
- Ödeme Seçenekleri
- Yorumlar (0)
- Tavsiye Et
- Resimler
-
Model
DS-KD8003-IME1
System parameters
Processor
Embedded MCU Processor
Operation system
Embedded Linux operation system
Operation method
Physical button
Video parameters
Video compression standard
H.264
Resolution
Main Stream: 1920 × 1080
Sub Stream: 720 × 480BLC
Supported
DNR
Supported
WDR
Supported
Anti-flicker
50 Hz, 60 Hz
Field of view
Horizontal : 180°
Vertical : 96°Audio parameters
Audio input
Built-in omnidirectional microphone
Audio output
Built-in omnidirectional (more than 85 dB within 20 cm)
Audio compression standard
G.711 U
Audio compression rate
64 Kbps
Audio quality
Noise suppression and echo cancellation
Light supplement
Light supplement mode
IR supplement
Network parameters
Ethernet
10/100 Mbps self-adaptive Ethernet
Network protocol
TCP/IP, RTSP
Alarm parameters
Tampering alarm
1
Interfaces
Module-connecting
1
I/O input
4
Debug
1
Relay
2 (30 V, 1 A)
General
Physical button
1
Power supply
12 VDC/PoE ( IEEE 802.3af)
Power consumption
≤10 W
Working temperature
- 40 °C to 60 °C (- 40 °F to 140 °F)
Working humidity
10% to 95%
IP protection level
IP65
Installation
Two type surface and inface
Dimensions (W × H × D)
107 mm × 117 mm × 46 mm (4.21" ×
4.61" × 1.81")Ürün Etiketleri
