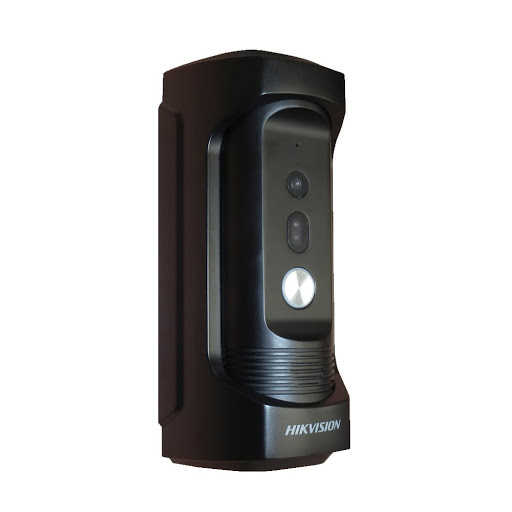

2.0MP Harici Kameralı Zil Paneli

Model

DS-KB8113-IM

System parameters

Processor

High-Performance Embedded SOC Processor

Operation system

Embedded Linux Operation System

Camera parameters

Image sensor

1/3" Progressive Scan CMOS, Color, Day/Night

Light sensitivity

Low Illumination

Lens

Pinhole, f3.47mm,F2.5

Field of view

80°(Horizontal), 44°(Vertical)

Field of view adjustment

-50°to 50°

Video parameters

Video compression standard

H.264

Video streaming

Dual Stream

Resolution

Main Stream: 1920 × 1080
Sub-Stream: 640 x 480

Video frame rate

PAL: 25 fps, NTSC: 30 fps

Video bit rate

Main Stream: 32 Kbps to 4096 Kbps
Sub-Stream: 32 Kbps to 2048 Kbps

Anti-flicker frequency

50 Hz, 60 Hz

Wide dynamic range

Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF

Image settings

Color, Brightness, Contrast, Sharpness, Saturation, Video Standard,
OSD Display

Audio parameters

Audio streaming

Two-Way, Full Duplex

Audio input

Built-in Omnidirectional Microphone

Audio output

Built-in Loudspeaker

Audio compression standard

G.711 U

Audio compression rate

64 Kbps

Audio quality

Noise Suppression and Echo Cancellation

Light supplement

Light supplement mode

IR Supplement, IR Distance: 5 Meters

Wavelength

940 nm

Control

Auto ON/OFF, Time ON/OFF

Model

DS-KB8112-IM

Network parameters

Ethernet

10/100 Mbps Self-Adaptive Ethernet

Network protocol

RTSP, RTP, ONVIF, ISAPI, NTP, HTTP, HTTPS, DHCP, FTP, SMTP

Network connection mode

DHCP, Static IP Address

Door-unlocked duration

1 s to 255 s

Alarm parameters

Alarm input

Door Magnetic Alarm

Device interfaces

Network interface

1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

I/O input

1

I/O output

1 Relay Output

Event actions

Event

Motion Detection, Picture Capturing, Call Button Pressing

File uploading

FTP

Email notification

Login Succeeded via Software or Web

General

Material

Wall Mounting Shield: Zinc Alloy Front Panel: Zinc Alloy
Rear Panel: Aluminum Alloy
Wall Mounting Plate: Secc

Impact protection

IK 9

Ingress protection level

IP 66

Power supply

PoE (Power over Ethernet)

12 VDC

Power consumption

Max. 12 W

Working temperature

-30° C to +50° C (-22° F to 122° F)

Working humidity

10% to 90%

Video management software

Video management software from HIKVISOIN (included). For more information, see http://www.hikvision.com/us/Tools_84.html

Dimensions (L × W × H)

161.9 mm × 74.1 mm × 53.2 mm (6.37" × 2.92" × 2.09")

Weight

773g (1.70lb)

Available Model

DS-KB8112-IM
