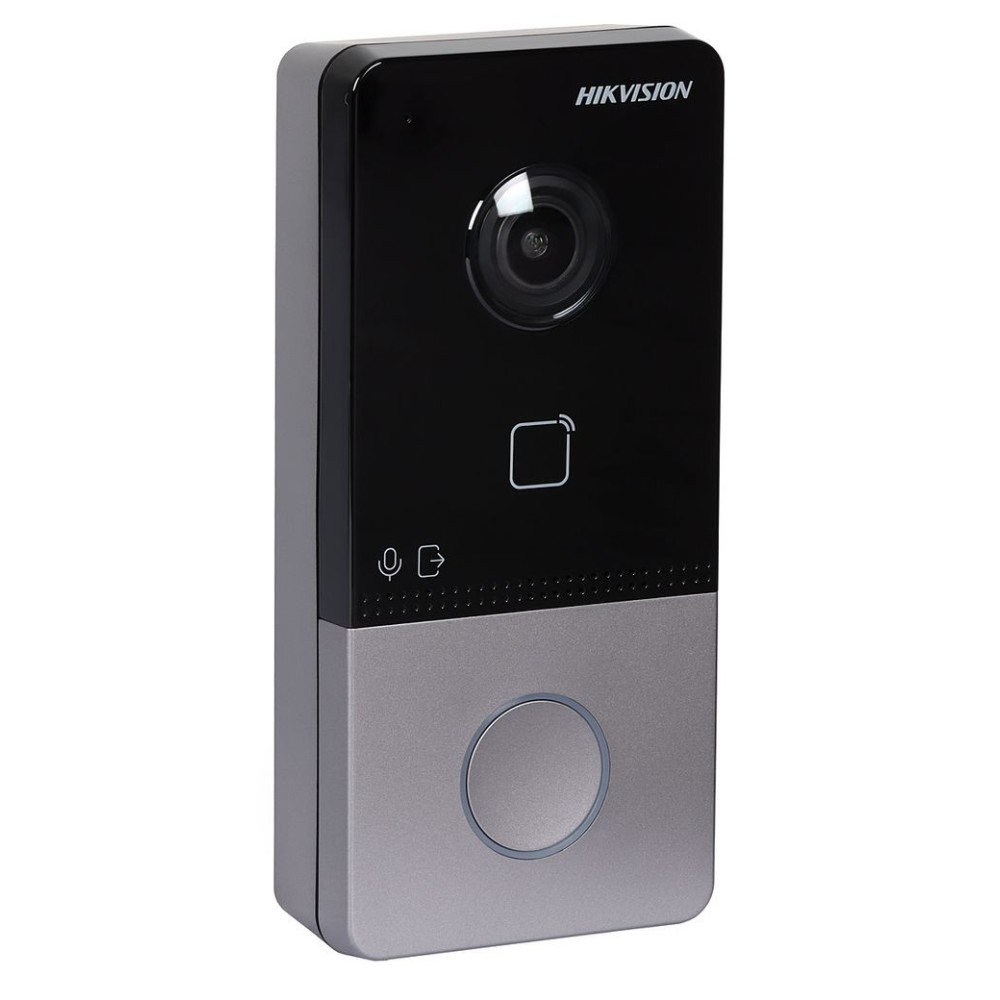

Tek Butonlu Dış Mekan Görüntülü İnterkom Kapı Zili (Wİ-Fİ)

Supplement Light

IR Supplement

Lens

1

FOV

Horizontal: 129° Vertical: 75°

WDR

True WDR

Resolution

Main Stream: 1920×1080p, 720p Sub Stream: 704×576

Audio Parameters

Audio Compression Standard

G.711 U

Audio İnput

Built-in Omnidirectional Microphone

Audio Output

Built-in Loudspeaker

Audio Compression Bitrate

64 Kbps

Audio Quality

Noise Suppression And Echo Cancellation

Volume Adjustment

Adjustable

Capacity

Fingerprint Capacity

/

User Capacity

2000

Face Capacity

/

Linked İndoor Station

1

Event Capacity

/

Network Parameters

Communication Protocol

TCP/IP, RTSP

Wired Network

10/100 Mbps self-adaptive Ethernet

Wi-Fi

Support

Bluetooth

/

3G/4G

/

Received Frequency

2.4 to 2.4835GHz

Transmitted Frequency

2.4 to 2.4835 GHz

Bandwidth

20 to 40 MHz

Frequency Power

802.11b:16dBm +/- 1.5dBm
802.11g:15dBm +/- 1.5dBm
802.11n(ht20):14dBm +/- 1.5dBm
802.11n(ht40):12dBm +/- 1.5dBm

System Parameters

Operation System

Embedded Linux operation system

Flash

16 M, 32 M

RAM

256 M

CPU

Embedded MCU Processor

Display Parameters

Size

/

Operation Method

/

Type

/

Resolution

/

Video Parameters

Video Compression Standard

H.264

Device İnterfaces

Alarm İnput

4

Network İnterface

1

TAMPER

1

RS-485

1

Exit button

1

USB

0

Wiegand

0

TF Card

0

Alarm Output

0

Lock Control

1

Door Contact İnput

1

Power İnterface

1

General

Button

1

Indicator

2

Installation

Surface mounting

Working Mtemperature

-40° C to +55° C(-40° F to 131° F)

Working Mhumidity

10% to 95%

Indicator

2

Weight

265g

Protective Level

IP65

Power Supply Method

IEEE802.3af, standard PoE 12 VDC

Dimensions

138 mm  × 65 mm  × 27 mm

Battery

/

Application Environment

Outdoor

Power Consumption

＜ 10 W
