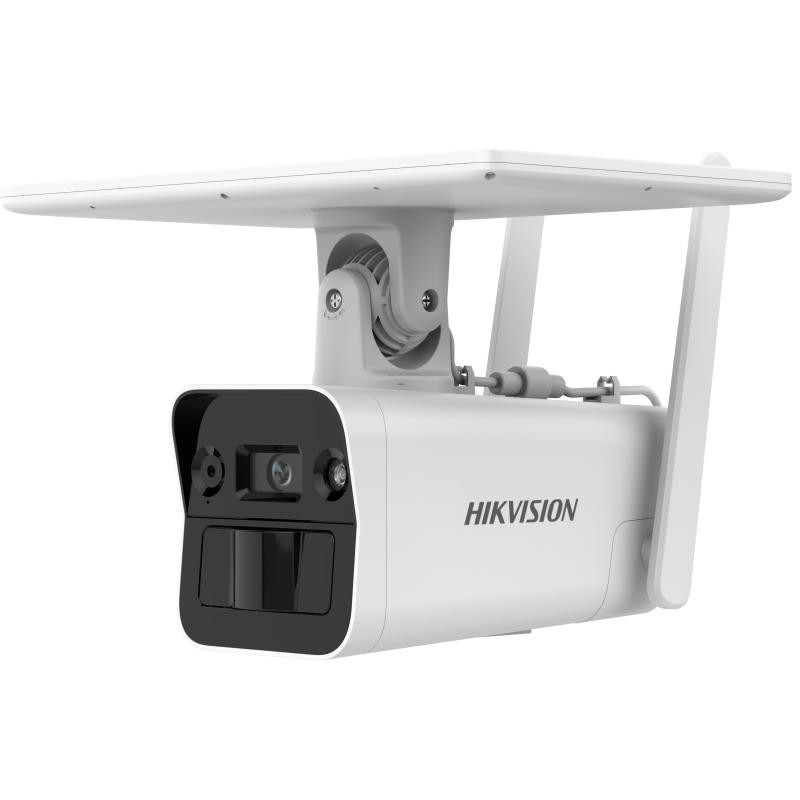

4MP 4mm Sabit Lens 4G, MicroSD Kart IP67 Solar Kamera

Hikvision DS-2XS2T41G1-ID/4G

4MP 4mm Sabit Lens Güneş Enerjili (SOLAR) Kamera

* 4MP Çözünürlükle Yüksek Kaliteli Görüntüleme

* Güneş Paneli ve Dahili Batarya

* Akıllı Analiz İnsan ve Araç Desteği

* Dahili Mikrofon ve Hoparlör Desteği

* Suya ve Toza Dayanıklı (IP67)

* 4G (LTE-TDD/LTE-FDD/TD-SCDMA) İletişimini Destekler

Teknik Özellikleri :

Kamera :

Image Sensor : 1/3" Progressive Scan CMOS

Max. Resolution : 2560×1440

Min. Illumination : B/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Shutter Time : 1/3 s to 1/100,000 s

Day & Night : IR Cut Filter

Angle Adjustment : Solar Panel: Tilt: -45° to 45°, Rotate:-30° to 30°

Lens :

Lens Type : Fixed Focal Lens, 4 and 6 mm Optional

Iris Type : Fixed

Aperture : 4mm: F1.28, 6mm: F1.6

Depth of Field : 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞

Focal Length & FOV :

4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

Lens Mount : M12

Aydınlatma :

Supplement Light Type : IR

Supplement Light Range : Performance Mode: Up to 30m, Proactive Mode: Up to 10m

IR Wavelength : 850 nm

Smart Supplement Light : Yes

Video :

Main Stream :
50 Hz: 12.5fps (2560×1440, 1920×1080, 1280×720)
60 Hz: 15fps (2560×1440, 1920×1080, 1280×720)

Sub-Stream :
50 Hz: 12.5fps (1280×720, 640×480, 640×360)
60 Hz: 15fps (1280×720, 640×480, 640×360)

Video Sıkıştırma :

Main Stream : H.265/ H.264,

Sub-Stream : H.265/H.264/MJPEG, H.264+ and H.265+: Main Stream Supports Under Performance Mode

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile, Main Profile, High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Region of Interest (ROI) :1 Fixed Region for Main Stream

Scalable Video Coding (SVC) :H.264 and H.265 Encoding

Ses :

Audio Sampling Rate : 8 kHz/16 kHz

Environment Noise Filtering : Yes

Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Ağ :

API : ISAPI,SDK,ISUP,OTAP

Security : Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Simultaneous Live View : Up To 6 Channels

Protocols : TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

User/Host : Up to 32 users (3 user levels: administrator, operator, and user)

Network Storage : Auto Network Replenishment (ANR)

Client : iVMS-4200,Hik-Connect,Hik-Central

Web Browser : Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+

Mobile İletişim :

SIM Card Type : Micro SIM

Uplink and Downlink Data Rate : Cat 4, uplink: 50 Mbps, downlink: 150 Mbps

Standard : LTE-TDD,LTE-FDD,WCDMA,GSM

Görüntü :

SNR : ≥ 52 dB

Wide Dynamic Range (WDR) : Digital WDR

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

Image Settings : Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Dönüştürücü :

Transducer Type : PIR + Radar

Detection Angle : 4 mm : Horizontal: 80°, vertical: 42°,6 mm：Horizontal: 50°, vertical: 22°

Detection Range : Up to 12 m

Arayüz :

Ethernet Interface : 1 RJ45 10 M/100 M Self-Adaptive Ethernet Port

On-Board Storage : Built-in eMMC storage, up to 8 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.

Built-in Microphone : Yes

Built-in Speaker : Yes

Reset Key : Yes

Analizler :

Basic Event : Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error

Linkage : Upload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning

Genel :

Power

Power Consumption and Current :

Typical Power Scenarios : 1.85 W (4G Working)

Standby Scenarios: 80 mW

Max. Power Consumption: 7 W

Power Supply:12 VDC

*For debugging only

6.5 W (deviation: ± 1 W) Solar Panels

Power Interface :

Power Supply İnterface : Ø5.5 mm coaxial power plug

Extened Solar Panel : Ø5.5 mm coaxial power plug

Material : Plastic

Storage Conditions : 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)

Language : English, Ukranian

General Function : Heartbeat,mirror,flash log

Startup and Operating Conditions : 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)

Dimension : 213.7 mm × 292.4 mm × 188.7 mm (8.4" × 11.5" × 7.3")

Package Dimension : 345 mm × 240 mm × 292 mm (13.6" × 9.4" × 11.5")

Weight : Approx. 1.42 kg (3.1 lb.)

With Package Weight : Approx. 2.07 kg (4.6 lb.)

Pil :

Battery Type : Ternary Lithium

Capacity : 51.46 Wh

Max. Charging Voltage : 12.6 V

Operating Temperature : Charging: 0 °C to 45 °C (32 °F to 113 °F) / Discharging: -20 °C to 50 °C (-4 °F to 122 °F)

Battery Voltage : 8.1 V to 12.6 V

Battery Life : More than 800 cycles

Cycle Lifetime : Proactive Mode: 1.5 Days, / Standby Mode : 11 Days

Battery Weight : Approx. 185 g (0.4 lb.)
