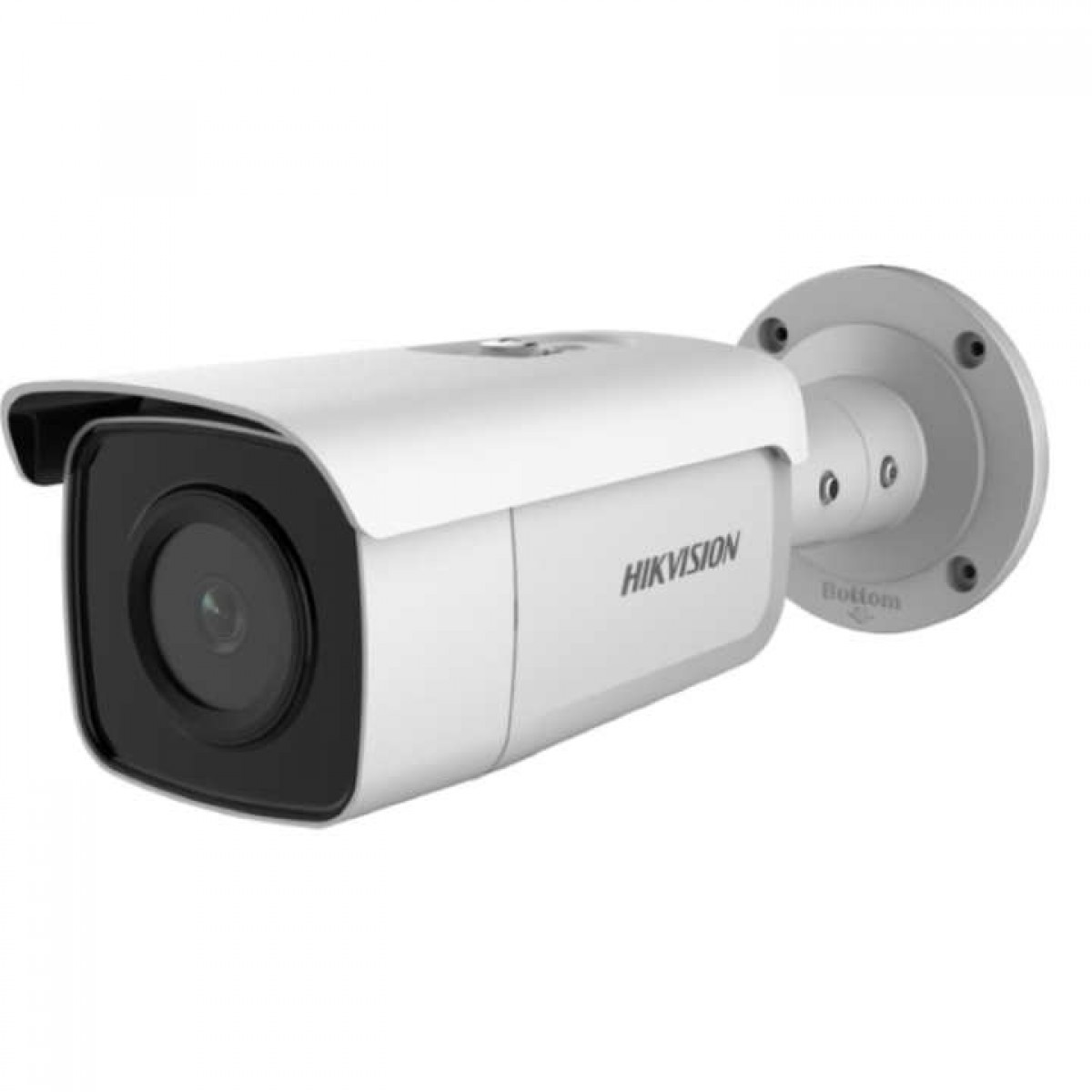

8.0MP 4.0mm H.265+ 30Mt. IR Bullet İP Kamera

DS-2CD2T85G1-I5

TEKNİK ÖZELLİKLER

Camera

Image Sensor

1/2" Progressive Scan CMOS

Min. Illumination

Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Focal length

2.8/4/6 mm

Focus

Fixed

Lens

2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131°

4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°

6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°

Lens Mount

M16

Aperture

F1.6

Day &Night

IR cut filter

DNR

3D DNR

Wide Dynamic Range

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16 Mbps


Max. Resolution

3840 × 2160

Main Stream

50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser

ROI (Region of Interest)

Support 1 fixed region for main stream and sub-stream separately

Day/Night Switch

Day/Night/Auto/Schedule

*Note: When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.

Network

Network Storage

Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, Hik-Central

Web Browser

Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local Service: Chrome 41.0+, Firefox 30.0+

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button

Yes

Smart Feature-set

Smart Event

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection, face detection, scene change detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Trigger notification: HTTP, ISAPI, Email

General

Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Web Client Language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption

-I5:

12 VDC, 0.7 A, max: 9 W

PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 11 W

-I8:

12 VDC, 1 A, max: 11 W

PoE: (802.3af, 36 VDC to 57 VDC), 0.4 A to 0.2 A, max: 12.9 W

IR Range

-I5: Up to 50 m

-I8: Up to 80 m

Wavelength

850 nm

Protection Level

IP67

Material

Front cover: metal, back cover: metal

Dimensions

Camera: Φ105 × 289.5 mm (4.1″ × 11.4″)

Weight

Camera: 1000 g (2.2 lb.)

With package: 1500 g (3.3 lb.)

Camera Weight

Approx. 1090 g (2.4 lb.)

With Package Weight

Approx. 1614 g (3.6 lb.)

Linkage Method

Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture

Web Client Language

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Software Reset

Yes

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN

61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part

1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)

Environment

CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)

Protection

Ingression protection: IP67 (IEC 60529-2013)
