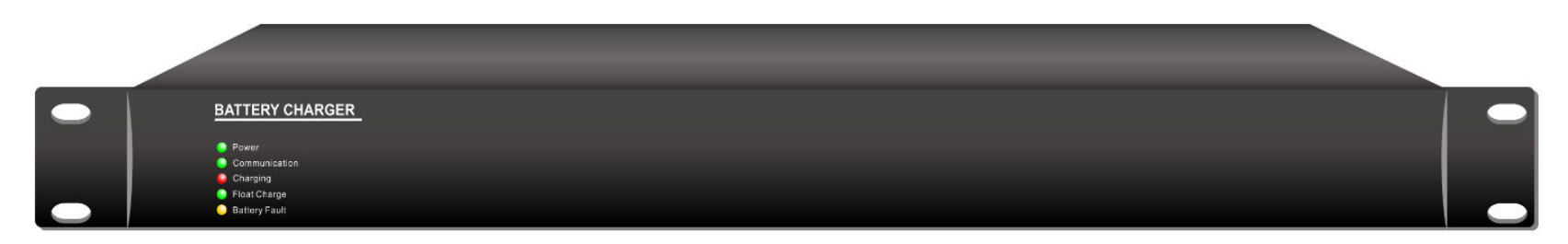

Battery Charger And 24V Power Supply
Ürün Grubu
:
Acil Anons Sistemleri
Ürün Kodu
:
DP-EVAC1000BC
Liste Fiyatı
:
1.100,00 USD + KDV
İskontolu USD
:
1.100,00 USD + KDV
Havale ile
:
46.525,35 TL
Aynı Gün Kargo
%100 Orjinal Ürün Garantisi
Kampanya
- Ürün Özellikleri
- Ödeme Seçenekleri
- Yorumlar (0)
- Tavsiye Et
- Resimler
-
Features:
- Auto switch into DC power supply when AC power fails
- Select auto/manual charging mode automatically
- Storage battery failure, over voltage, over-heat and over time charging detection
- Automatic temperature control fan and over heat protection
- Built-in battery charge management and monitoring circuit
- When connected to AC power, DC24V will be off automatically
- Storage battery support two or one DC 24V lead-acid battery
- Selection charging mode automatically to ensure safety charging and service life
- Pre-charge-constant current-trickle charge
- High charging efficiency and restore efficiency
- Support multiple volumetric battery≤200Ah
- With ID pre-set its zone number up to 200 units
- With RS485 to communicate with third party system
Specifications:
Model
Description
24V DC Battery Charger and Power Supply
Power Supply
220V-240V, 50/60Hz
AC Maximum Current
2A
AC Fuse
250V/3.15A, low speed type
DC Power Output
24V DC battery
DC Maximum Current
10A+10A
Maximum Charging Current
10A adjustable
Connector
Two battery inputs, two 24V DC outputs, two RS485 and two CAN inputs.
Battery capacity selector and ID selector.
Cooling System
Speed controlled cooling fan
Operation Temp
+5℃ to +45℃
Operation Humidity
<95%
Dimension(mm)
484(W)×450(D)×44(H)
Weight
4.5kg
- Auto switch into DC power supply when AC power fails
