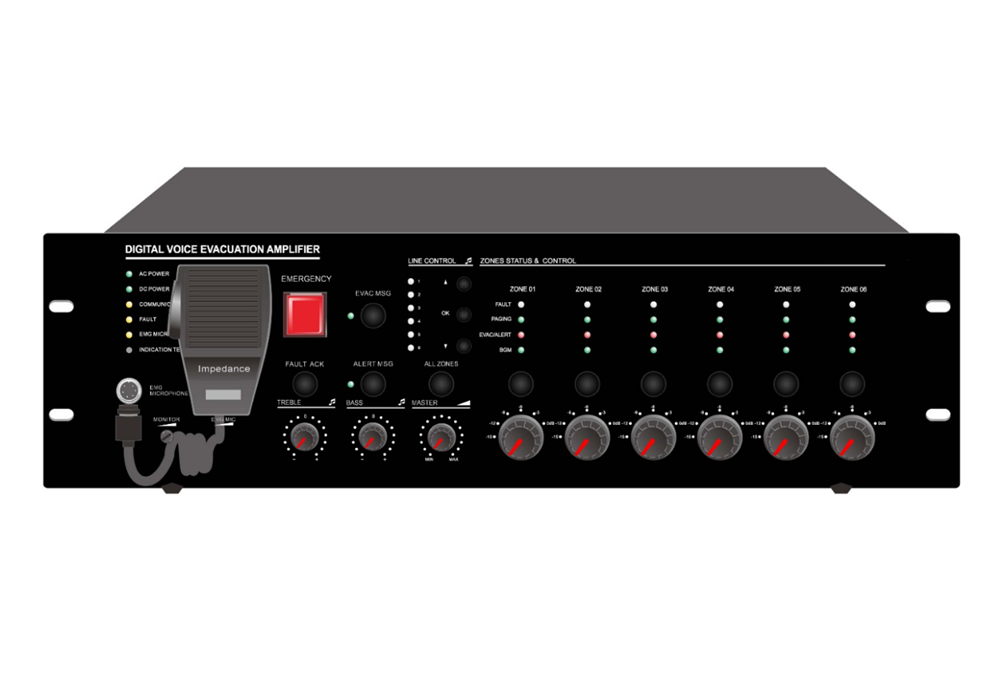

6 Zone EVAC Controller, Built-in 500W Class-D Amplifier
Aynı Gün Kargo
%100 Orjinal Ürün Garantisi
- Ürün Özellikleri
- Ödeme Seçenekleri
- Yorumlar (0)
- Tavsiye Et
- Resimler
-
Description:
The DP-EVAC1000 voice evacuation controller is EN54-16 certified public address & voice evacuation system. The all in one voice alarm & evacuation controller built-in remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface. The voice evacuation controller is innovated with most advanced DSP (digital signal processor) to ensure its hi-fi audio performance and superior signal processing in case of commercial announcement and emergency evacuation. Each controller built-in 6 zone speaker outputs, rated power output at 500W. The voice evacuation controller shall be pre-set through the supplied software over microphone number, zone number, zone loading, speaker monitoring, fire alarm mode, alert/EVAC message zone output, AC/DC etc, then synchronized the setting to master controller and router. The voice evacuation system is strictly follow the Construction products Regulation（EU）No 305/2011: EN54-16:2008 Voice Alarm Control and Indicating Equipment.
Feature:
- EN54-16 certification No. I/ISEETC. 000620190305.
- Digital voice evacuation system all in one controller.
- Integration of voice evacuation controller, remote PC software, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier, voice recorder, SD card, emergency microphone and fire alarm interface.
- Auto broadcasting EVAC and alert 256 voice messages to pre-set zones.
- Customized alert, evacuation & business message stored at SD card.
- AB speaker line surveillance to avoid any speaker line failure.
- Back-up power amplifier management.
- Up to 120 zones by cascaded more router DP-EVAC1000RT.
- Support 32 units of remote paging microphone DP-EVAC1000RM.
- Support external connection of fireman microphone DP-EVAC1000FM.
- Support of touch screen microphone DP-EVAC1000TM.
- Redundant network cabling backup through CAT6 cable loop connection.
- 8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.
- Logs and fault events auto recording.
Specification:
Model
Description
6 Zone Voice Evacuation Controller
Rated Power Output
500W
Fireman Microphone
5Mv, 600Ω
Line 1-2 Inputs
385mV, 10kΩ balanced Combo XLR
Line 3-6 Inputs
350mV, 10kΩ, RCA
Frequency Response
80Hz~20kHz
THD
＜1% at RMS,1KHz
S/N Ratio
>70dB
Speaker Output
100V AB 6 zone speaker outputs
REC Output
200mV
Control Input & Output
8 control inputs: Max 3.3V (voltage mode) or 0V closed contact;
8 control outputs: 0V closed contact;
1 fault, 1 reset & 1 EVAC relay outs
Voice Message
MP3 or WMA format, two separate players of SD card, programmable voice message up to 256, 10 years valid
Event Record
HEX format, Hard Flash memory, events up to 1000 records, 10 years valid
Operation Envr
Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Operation Humidity: <95%
Power Consumption
650W
Power Supply
AC230V or 115V & 24V DC inputs, 50-60HZ
AC Fuse
250V/6.3A, slow type and restorable fuse
Dimension
484×132×449mm
Weight
23kg
